Brief History of Origami

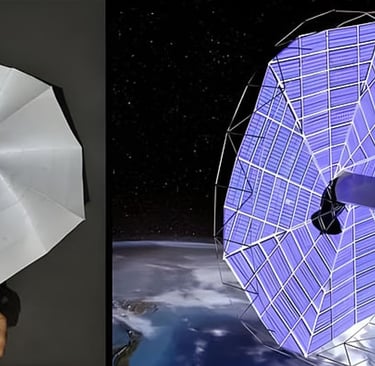

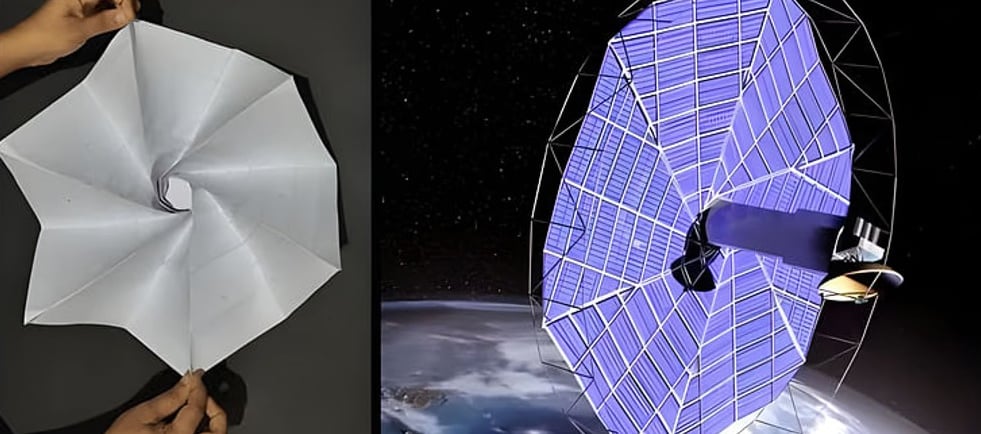

Origami - the traditional Japanese art of paper folding - has captivated hearts for centuries, evolving from a cultural craft into a powerful engineering tool. One of its most influential innovations is the “Miura fold,” created by JAXA emeritus professor Kōryō Miura. This pattern enables flat materials to unfold or fold in one smooth motion, and has influenced everything from satellite solar panels to everyday collapsible cans. As computational tools emerged, researchers began digitizing origami designs for engineering applications across architecture, medicine, and aerospace .

NASA’s Origami Innovations

NASA has embraced origami principles in multiple cutting-edge projects:

Origami-based Deployable Fiber-Reinforced Composites: Developed at NASA Langley, these UV-curable polymer carbon fiber composites—foldable like origami—can deploy under heat and support heavy loads (over 600 kg), making them ideal for booms, antenna supports, solar array frames, and habitat beams.

MODeL-T (Metalens Origami Deployable Lidar Telescope): Researchers at Goddard Space Flight Center have designed a compact, foldable LIDAR telescope. It launches as a cube, then unfolds into a nearly 2-meter star-shaped aperture, making powerful optical instruments viable on small satellites while cutting cost by up to 20×.

Starshade, PUFFER, Antenna Designs: NASA’s JPL uses origami in various conceptual projects—such as the Starshade (a flower-like structure to block starlight and image exoplanets), the folding explorer robot (PUFFER), and deployable antennas for CubeSats—enabling large structures to stow compactly and deploy in space.

Japan (JAXA) and Origami in Space

Japan continues to pioneer origami in aerospace:

OrigamiSat-1 and OrigamiSat-2: JAXA’s OrigamiSat-1 (a 3U CubeSat) demonstrated multifunctional, membrane-deployable structures in orbit. Its successor, OrigamiSat-2, is set to launch with a two-layer pop-up reflectarray antenna (50 cm × 50 cm) offering high-gain communication while folding into a compact stowage form; it's slated for launch in 2024 under JAXA’s Innovative Satellite Technology Demonstration-4.

Miura Fold Applications: JAXA uses the Miura fold in deploying 2D arrays (e.g., solar panels, membranes) aboard satellites like the Space Flyer Unit and SPROUT.

Why Origami Matters in Modern Space Missions

The artful simplicity of origami solves a challenging problem in space engineering: how to launch large structures within the limited volume of a rocket fairing. Origami-based systems pack compactly for launch yet expand precisely and reliably once in space, enabling robust, lightweight, and autonomous deployment mechanisms. NASA’s composites, telescopes, and antennas exemplify how origami can substitute mechanical complexity with smart material design; JAXA’s CubeSat deployments highlight origami’s translational power in real missions

NISAR Satellite: A Breakthrough in Earth Observation

The NASA-ISRO Synthetic Aperture Radar (NISAR) satellite is a joint mission between NASA and ISRO, designed to study Earth’s dynamic ecosystems, ice masses, vegetation, and natural hazards with unmatched precision. Scheduled for launch aboard an Indian GSLV rocket, NISAR carries two advanced radar systems; L-band (NASA) and S-band (ISRO); to provide all-weather, day-and-night imaging. Its mission is to track subtle movements of Earth’s surface, helping scientists monitor earthquakes, volcanoes, landslides, agriculture, and climate change.

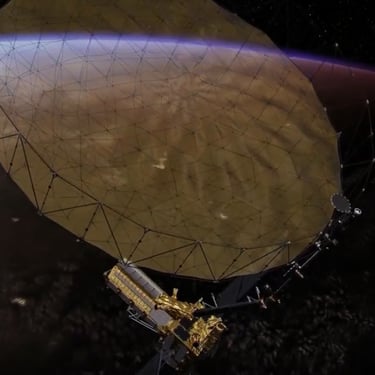

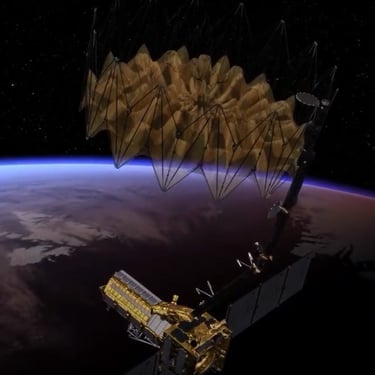

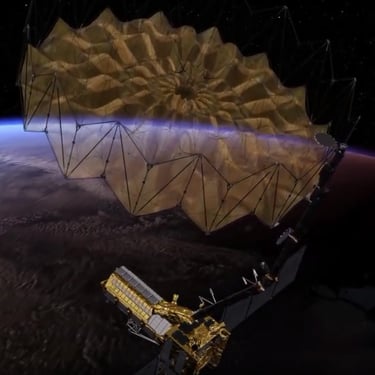

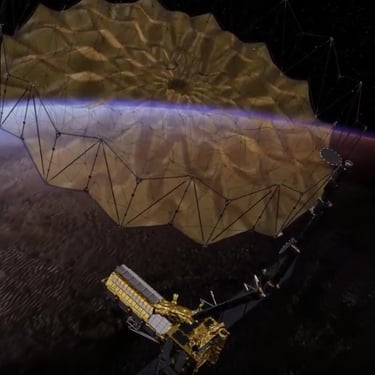

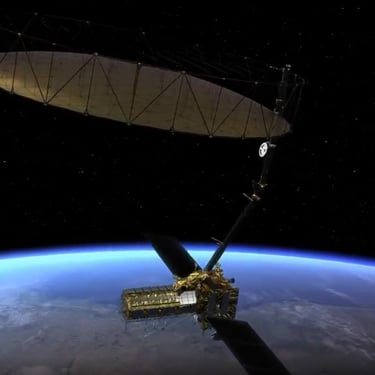

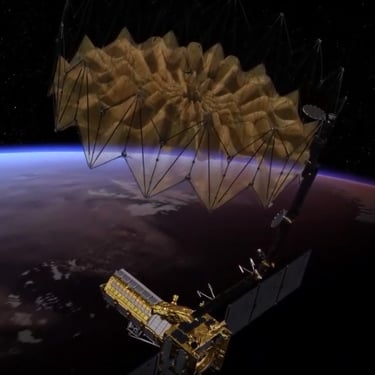

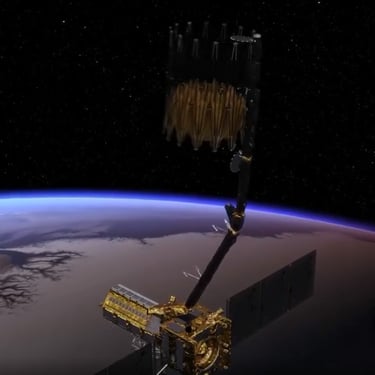

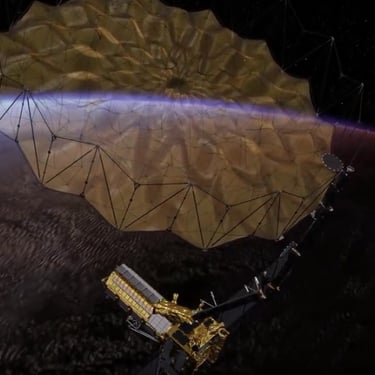

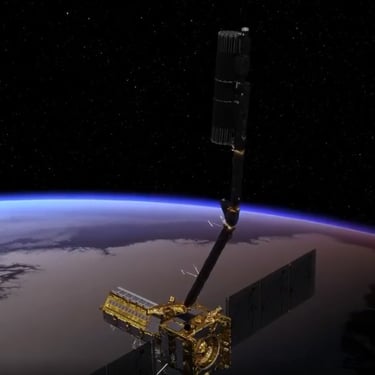

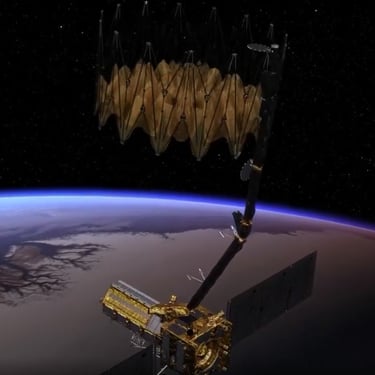

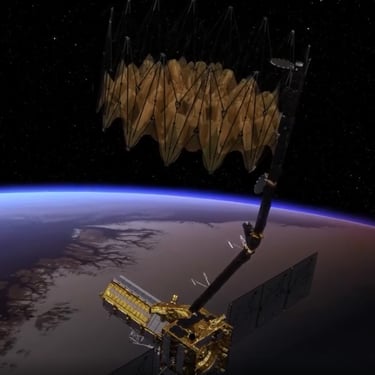

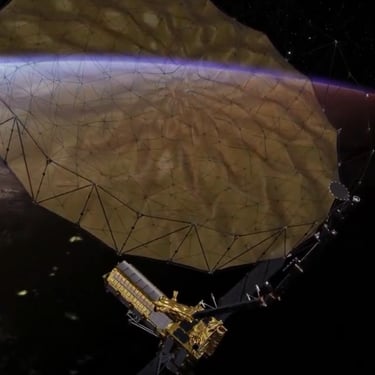

A striking feature of NISAR is its massive 12-meter deployable radar antenna, which uses origami-inspired engineering to fold compactly during launch and unfurl in orbit. This lightweight mesh reflector, built by Astro Aerospace, exemplifies how origami principles solve the challenge of fitting large instruments inside rocket fairings. By combining cutting-edge radar technology with innovative origami deployment, NISAR is set to transform Earth observation and deepen our understanding of planetary changes.
